ESUMEI / Industrial Monitoring Platform
Field Devices → Edge → Cloud

Industrial data, from field to cloud.

ESUMEI G3 connects to RS-485/Modbus field devices. ESUMEI OS acquires and buffers the data at the edge. ESUMEI Cloud makes it available anywhere — or build your own path with the Python SDK.

RS-485 / Modbus Local Buffering Cellular Backhaul

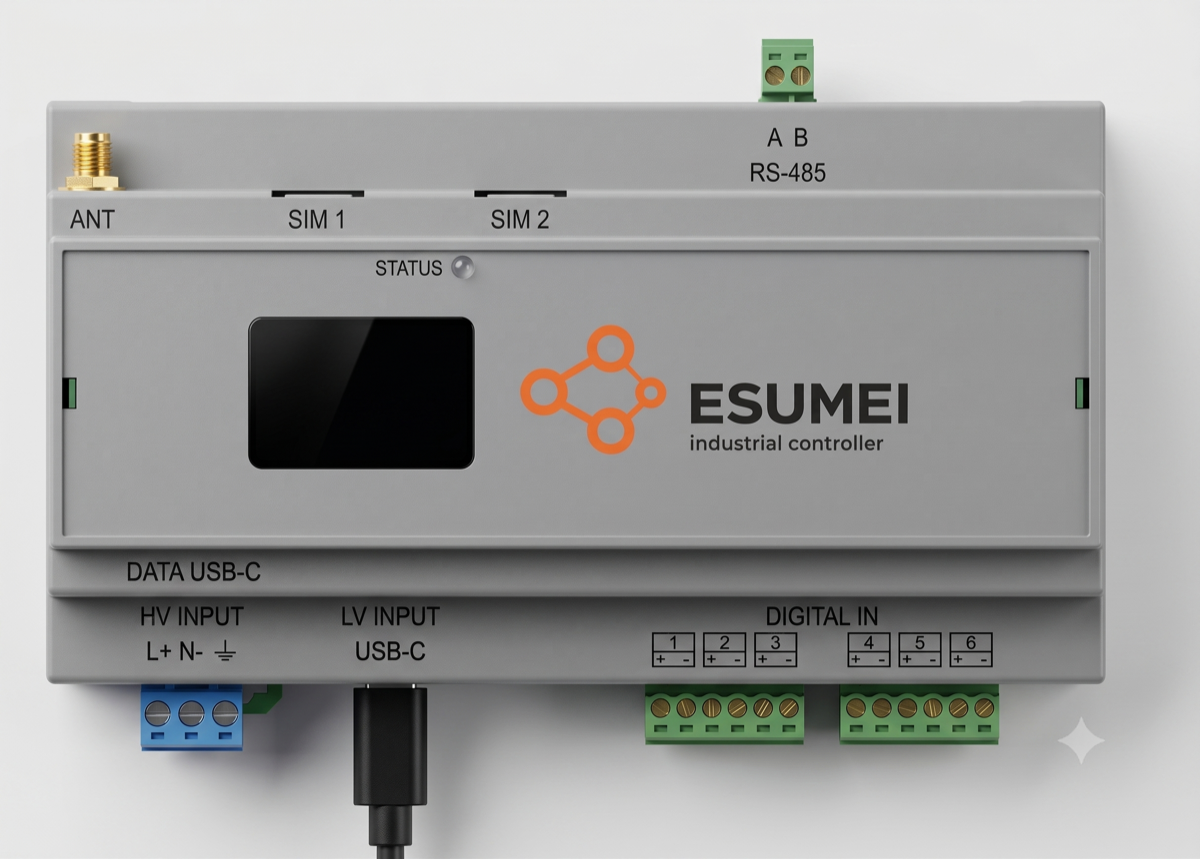

ESUMEI G3 industrial controller in its DIN-rail enclosure: ESUMEI logo, status indicator and display on the front panel; antenna and two SIM slots on the top edge; HV input, DATA USB-C, LV input USB-C and RS-485 connectors along the bottom edge
01Overview

One platform, three layers

Field meters connect to ESUMEI G3. ESUMEI OS runs the edge logic. ESUMEI Cloud makes the data available anywhere — or build your own path with the SDK.

  1. Field
    Field Devices

    RS-485 / Modbus meters

    Compatible multifunction meters and industrial instruments.

  2. Hardware
    ESUMEI G3

    The controller

    Acquires, buffers, and manages connectivity for the site.

  3. Edge Software
    ESUMEI OS

    Runs on the controller

    Polls, normalizes, and forwards data — resilient to outages.

  4. Cloud Service
    ESUMEI Cloud

    Managed monitoring

    Remote visibility, controller health, alerts, and provisioning.

  5. Your Systems
    Dashboards & APIs

    Wherever you work

    Customer dashboards, integrations, or monitoring systems.

Developer path ESUMEI G3 + Python SDK → Your own software or cloud integration

ESUMEI Offerings

Three packages built around ESUMEI G3 — choose how much of the software and service layer you want Anietronic to provide.

Build

Controller + SDK

For developers and system integrators building a customer-operated solution around ESUMEI G3.

  • ESUMEI G3
  • Base firmware
  • Documentation
  • Python SDK
  • Example applications

Customer develops and operates the application and integration layer.

Deploy

Controller + ESUMEI OS

ESUMEI G3 with maintained edge software, supported meter polling, local buffering and basic hosted services.

  • ESUMEI G3
  • ESUMEI OS
  • Supported meter integration
  • Automatic polling
  • Local buffering
  • Basic hosted services

Includes two years of applicable basic hosted services from controller delivery.

View the complete 2-page offering comparison (PDF, opens in a new tab).

Compare What's Included
Included SDK OS OS + Cloud
Hardware
ESUMEI G3 controllerIncludedIncludedIncluded
Hardware documentation & user guideIncludedIncludedIncluded
Firmware & Edge Processing
Firmware / OSPython SDKESUMEI OSESUMEI OS
Bootloader & base firmwareIncludedIncludedIncluded
Modbus meter templates (e.g. Schneider, Eastron, Selec)Self-implementedIncludedIncluded
Meter polling & configurationSelf-implementedIncludedIncluded
Resilient local bufferingSelf-implementedIncludedIncluded
Standardized electrical data modelSelf-implementedIncludedIncluded
MQTT / HTTPS connectorSelf-implementedIncludedIncluded
Cloud, Connectivity & Support
OTA firmware updatesSelf-implementedCustomer-managedQuoted
Alerts & notificationsSelf-implemented—Quoted
Controller health monitoringSelf-implemented—Quoted
Connectivity managementSelf-implemented—Quoted
Multifunction meter integrationSelf-implemented—Quoted
Zero-touch provisioning——Quoted
Geolocation & asset tagging——Quoted
SupportCommunityStandardDirect from Anietronic

Package scope is defined by the applicable quotation or order. Cloud hosting, managed OTA, telecommunications, installation, custom engineering, fleet operations and service levels are included only where expressly stated.

02Hardware

ESUMEI G3

The industrial controller at the center of the platform — connects to compatible meters, acquires data, buffers it locally, and communicates with remote systems.

24–240 VAC / 24–250 VDC + USB-C 5 VDC 4G LTE Cat-1bis + 2G Fallback Dual SIM Isolated RS-485 / Modbus Integrated Battery Backup Local Store-and-Forward Buffering DIN-Rail Deployment
Hardware

Integrated Backup Power

Maintains controller operation during loss of primary station power, with up to 3 days autonomy under the standard operating profile.

Edge Software

Persistent Local Buffering

Continues acquiring feeder data during communications outages, with up to 14 days retention for 10 meters under the standard acquisition profile.

Close-up of the ESUMEI G3 front panel: ESUMEI logo on the left, display on the right, status indicator above the display
Front Panel — Display & Status Indicator
Close-up of the ESUMEI G3 bottom-edge connectors, left to right: three-terminal HV input (L, N, earth), DATA USB-C, LV input USB-C, and two-terminal RS-485 (A, B)
Field Connections — HV Input, USB-C & RS-485
03Comparison

How ESUMEI G3 Compares

A factual, deployment-focused comparison against four other industrial RTU/controller products. Figures are drawn from manufacturer datasheets and public distributor pricing — see Technical Specifications for full ESUMEI G3 sourcing notes.

Characteristic ESUMEI G3 Advantech
ICR-3241W
Robustel
EG5120
ICP DAS
RTU-540P-NB
Siemens
RTU3030C
Connectivity
Cellular network support 4G LTE Cat-1bis, 2G fallback 4G LTE (Cat.4) 5G / 4G / 3G / 2G NB-IoT (Cat-NB1) 2G/3G (GPRS/UMTS)
Dual SIM Yes Yes Yes Not listed No
RS-485 / Modbus Yes — isolated Yes — via Router App Yes Yes No — DNP3/IEC104
Power
AC input range 24–240 VAC No — DC only No — DC only No — DC only No — DC only
DC input range 24–250 VDC 9–36 VDC 9–60 VDC 10–30 VDC 12–24 VDC
Low-voltage input USB-C, 5 VDC up to 3 A Not listed Not listed Not listed Not listed
Backup battery Integrated backup battery RTC battery only Not listed Yes — Li-ion (unlisted) Optional — accessory
Storage & Mounting
Storage Not disclosed eMMC eMMC microSD Optional SD card
Operating temperature −20°C to +70°C −40°C to +75°C −40°C to +70°C −25°C to +75°C −40°C to +70°C
DIN-rail mounting Yes Yes — accessory Yes Not listed Yes
Commercial
List price $1,150 ~$627 ~$878 ~$1,099 ~$1,766

Public competitor pricing shown for comparison and may vary by configuration, region and supplier. "Not listed" means the manufacturer's published documentation does not clearly establish the value — it is not a claim that the capability is absent.

Built for mixed-generation networks

ESUMEI G3 uses 4G LTE Cat-1bis for primary connectivity with 2G fallback, helping remote deployments remain reachable at sites where LTE is unavailable but a 2G network is still in service.

This can be particularly useful for industrial and utility assets deployed across regions where multiple generations of mobile infrastructure remain operational.

04Edge Software

ESUMEI OS

The edge software running on every ESUMEI G3 — acquisition, buffering, and connectivity, handled at the site.

01

Poll

Reads compatible RS-485/Modbus devices using meter templates.

02

Normalize

Converts readings into a standardized electrical data model.

03

Buffer

Resilient local storage — store-and-forward through outages.

04

Connect

Manages cellular connectivity, outbound-only and TLS-encrypted.

05

Forward

Sends data to configured destinations over MQTT or HTTPS.

Resilience

Backfill After Outages

Buffered readings drain in order once connectivity returns.

Configuration

Validated Before Applying

Config changes are checked before they take effect.

Updates

Remote Configuration

Supported meters and connectivity, configured remotely where supported.

05Managed Cloud Service

ESUMEI Cloud

The managed service that receives, organizes, and visualizes data from deployed ESUMEI controllers.

ESUMEI Cloud

Deployed controllers reporting into one managed service — organization shown abstractly, not real customer data.

See

Consume & Visualize

Remote data access and visualization for deployed controllers.

Manage

Organize & Provision

Controller and device organization, provisioning, and asset identification.

Act

Alerts & Updates

Alerts, notifications, and managed update coordination.

06Feeder Monitoring

Feeder Monitoring Bundles

ESUMEI G3 with a compatible feeder meter, in three accuracy classes. Pair any class with the SDK, ESUMEI OS, or ESUMEI OS + Cloud — see Overview for software options.

Feeder Bundle

Class 1

Cost-sensitive feeder monitoring.

ControllerESUMEI G3
MeterDR-Standard, DIN-rail
Accuracy classClass 1
SoftwareSDK / OS / OS + Cloud
Feeder Bundle

Class 0.5S

Standard feeder visibility.

ControllerESUMEI G3
MeterPM-Advanced, panel mount
Accuracy classClass 0.5S
SoftwareSDK / OS / OS + Cloud
Feeder Bundle

Class 0.2S

High-stakes measurement points.

ControllerESUMEI G3
MeterPM-Precision, panel mount
Accuracy classClass 0.2S
SoftwareSDK / OS / OS + Cloud
Compare Feeder Meter Classes
Feeder Bundle Class 1 Class 0.5S Class 0.2S
Meter
Meter tierDR-StandardPM-AdvancedPM-Precision
MountingDIN-RailPanel MountPanel Mount
Energy accuracy classClass 1Class 0.5SClass 0.2S
Deployment
ControllerESUMEI G3ESUMEI G3ESUMEI G3
Software optionsSDK / OS / OS + CloudSDK / OS / OS + CloudSDK / OS / OS + Cloud
Deployment packageAvailableAvailableAvailable
Recommended whenCost-sensitive sitesStandard feeder visibilityHigh-stakes measurement points

Meter tier and configuration details are confirmed with Anietronic at quotation.

07Resources

Resources

Developer resources and reference documentation.

Public

ESUMEI G3 Technical Specifications

Detailed electrical, communications, environmental and interface specifications for ESUMEI Industrial Controller Gen III.

Prefer the interactive page? See the full Technical Specifications reference.

Public Download

ESUMEI G3 Python SDK

For building your own software or cloud integration.

Public

ESUMEI G3 User Manual

Installation, connection, operation and product guidance for ESUMEI G3.

Recommended

ESUMEI Offering Comparison — Compact

Two-page comparison of Controller + SDK, Controller + OS and Controller + OS + Cloud.

Public

ESUMEI Offering Guide — Detailed

Detailed offering matrix, commercial scope and service notes for ESUMEI controller packages.

Customer & Partner

ESUMEI OS Documentation

Edge software configuration, diagnostics, and telemetry.

Available to customers and approved partners upon request.

Additional technical documentation beyond what's listed here is available from Anietronic on request — see Contact.

08Order

Order online / request a quote

An inquiry form, not a checkout — ESUMEI offers are quoted based on configuration and site requirements. Submitting this form does not place an order or transmit a payment.

Please enter your name.
Please enter a valid email address.

Available upon request — submit for a quote.

Please add a note describing what you need.
09Contact

Keep telemetry flowing.

Talk to Anietronic about ESUMEI G3, ESUMEI OS, ESUMEI Cloud, or a feeder-monitoring deployment.

National Distributors

Nigeria — Anietronic Limited
